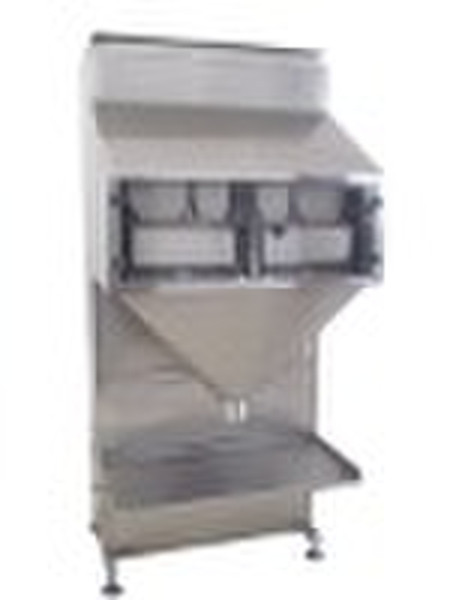

Granule Filling Machine FM-G

FEATURES 1. Two-independence of the weighing cabinet to weigh: less vulnerable by outside influence, with separate bags, work fast.2. Feeder-adjust automatically according the proportion of the material to ensure high-precisionand high fast.3. Independent single weight sensor: stable performance, high sensitive.4. Time can be set to memory the current number of the packing, easy to transfer and timelyfeedback the rate of qualified products.5. Time can be set to cooperate with the action, easy to operate.6. With calibration procedures: equipped with poise and calibration hooks, adjusted at anytime, it’svery useful the weight drift in long time no using.7. Weighing cabinet is sealed by glass, equipped with the dust collector, easy to collect the dustand protect the environment of the workshop.8. The weighing cabinet use the linked way, it can be disassembled directly and easy to clean.Specification Meteringmode Vibrationproductfeed-in&weighing Packingweight 50g-1000g Packingarccuracy ≤1g Packingspeed 5-30times/min Powersupply 1P220V50 60HZ Totalpower 500w Totalweight 150Kg OverDimensions 630X530X1660MM Hoppervolume 60L APPLICATIONS 1.VP-G granule filling machine can do measuring and filling work. It’s suitable for the fluidic granular materials, such as rice, sugar, monosodium glutamate, solid drink, glucose, chicken essence, washing powder or expanded granular materials. 2.Weighing Mode: Vibrating products fill in and weighing SERIES TypeFilling Range Filling SpeedAccuracyPower SupplyDimensionWeightFM-G/1000 50-1000g 15-30pcs/min ≤±1g% AC220V 50HZ 630×530×1660mm 150kg FM-G/5000 200-5000g 8-15pcs/min ≤±2g% 880×860×2010mm 180Kg
